Jenkins部署

Jenkins部署

apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "5"
    description: ""
  creationTimestamp: "2024-07-04T03:16:31Z"
  generation: 14
  labels:
    appgroup: ""
    version: v1
  name: jenkins-prod
  namespace: jenkins
  resourceVersion: "942871743"
  uid: cbd5e9cc-ade3-4758-9819-341c54e27e9b
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: jenkins-prod
      version: v1
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: jenkins-prod
        version: v1
    spec:
      containers:
      - env:
        - name: PAAS_APP_NAME
          value: jenkins-prod
        - name: PAAS_NAMESPACE
          value: jenkins
        - name: PAAS_PROJECT_ID
          value: 0d3e63479d00f4472f71c010ea9e185c
        - name: TZ
          value: Asia/Shanghai
        image: harbor.devops.kaishustory.com/kubesphere/jenkins:2.459
        imagePullPolicy: IfNotPresent
        name: jenkins-prod
        resources:
          limits:
            cpu: "4"
            memory: 4Gi
          requests:
            cpu: "1"
            memory: 1Gi
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /var/jenkins_home
          name: vol-172008326291832657
      dnsPolicy: ClusterFirst
      imagePullSecrets:
      - name: default-secret
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
      tolerations:
      - effect: NoSchedule
        key: jenkins
        operator: Exists
      volumes:
      - hostPath:
          path: /mnt/paas/jenkins/data
          type: ""
        name: vol-172008326291832657
---
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: "2024-07-04T03:16:31Z"
  labels:
    app: jenkins-prod
    version: v1
  name: jenkins-prod
  namespace: jenkins
  resourceVersion: "941708556"
  uid: 27936243-c4fb-4afd-ad70-63863fba18b6
spec:
  clusterIP: 10.245.248.119
  clusterIPs:
  - 10.245.248.119
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - name: cce-service-0
    port: 8080
    protocol: TCP
    targetPort: 8080
  - name: cce-service-1
    port: 50000
    protocol: TCP
    targetPort: 50000
  selector:
    app: jenkins-prod
    version: v1
  sessionAffinity: None
  type: ClusterIP

Apisix 域名代理

apiVersion: apisix.apache.org/v2
kind: ApisixRoute
metadata:
  name: jenkins.kaishujia.com
  namespace: jenkins
spec:
  http:
  - backends:
    - serviceName: jenkins-prod
      servicePort: 8080
    match:
      hosts:
      - jenkins.kaishujia.com
      paths:
      - /*
    websocket: true
    name: jenkins-prod

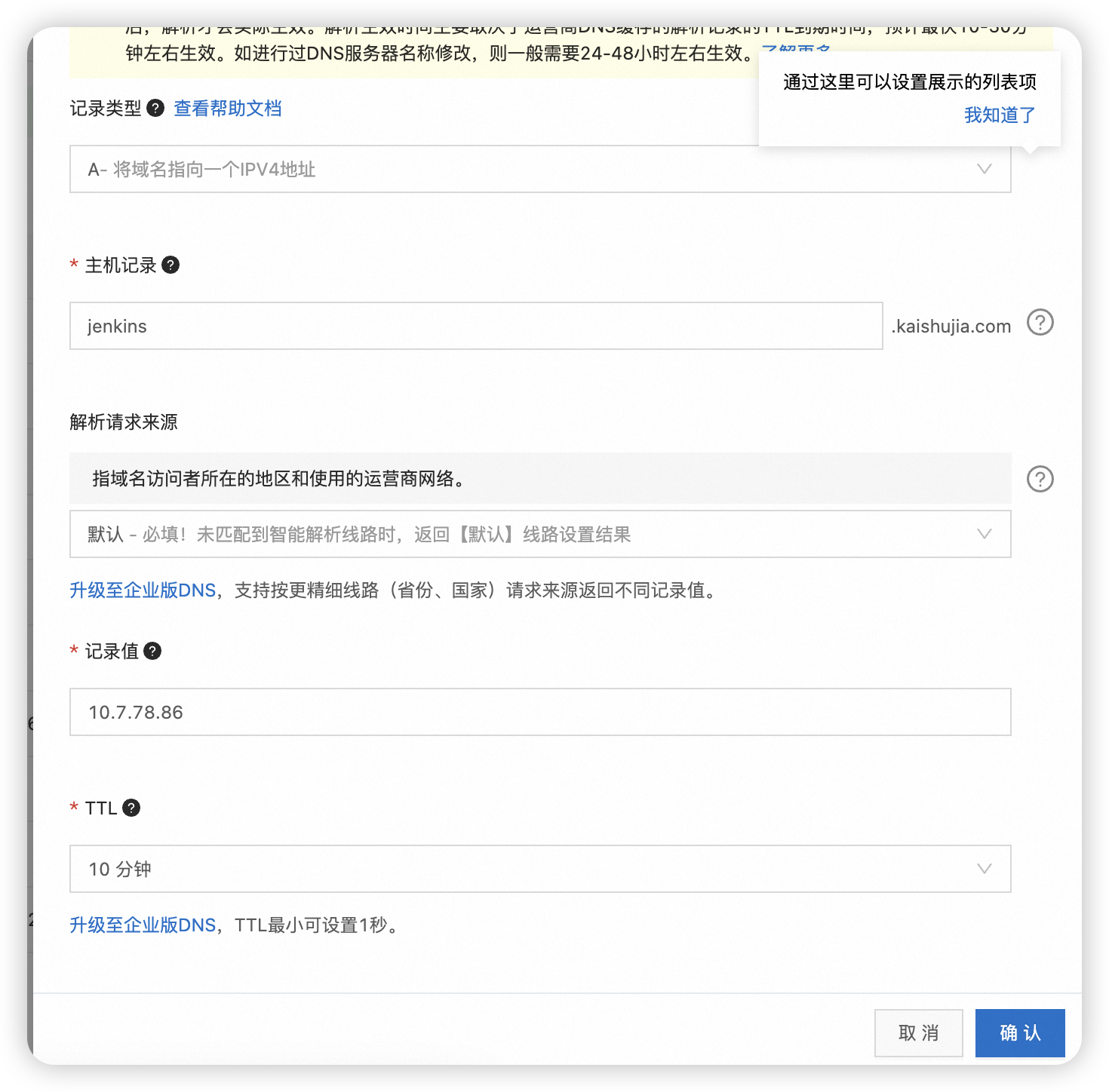

阿里云域名解析

访问jenkins

用户名: admin cat /var/jenkins_home/secrets/initialAdminPassword 获取密码

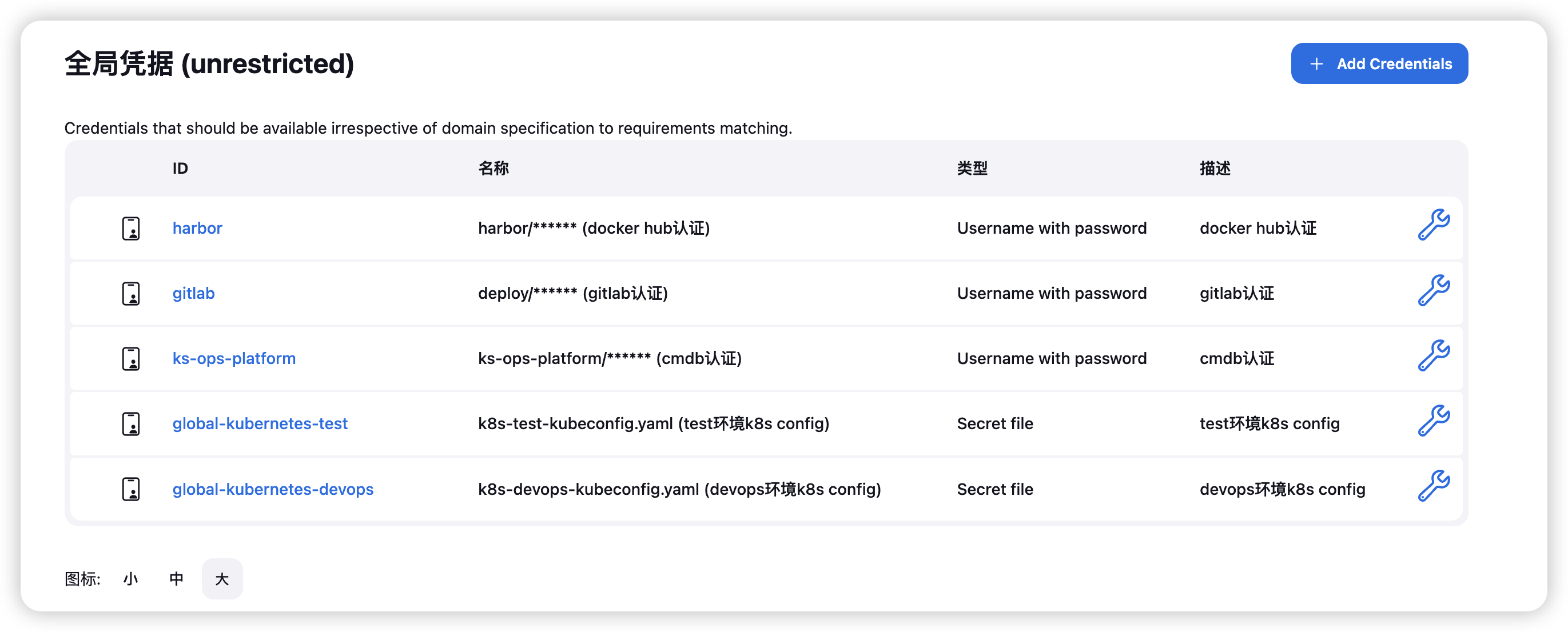

配置凭据

用户名	密码	类型	备注
deploy	1234567890	用户密码	gitlab认证
harbor	Kaishu2099=	用户密码	Docker hub认证
ks-ops-cmdb	c2f69d0d229d305f7b357de0ecf9f8ff55f847d5	用户密码	cmdb认证
global-kubernetes-test		Secret file	test环境k8s config
global-kubernetes-gamma		Secret file	gamma环境k8s config
global-kubernetes-prod		Secret file	prod环境k8s config
global-kubernetes-devops		Secret file	devops环境k8s config

安装插件

• Blue Ocean jenkins更好看的ui
• Git Parameter 参数化构建获取git分支
• Active Choices 参数化构建支持调用自定义的groovy脚本
• **Extended Choice Parameter ** 参数化构建支持调用自定义的groovy脚本 功能更强大
• build user vars 能够获取更多关于构建者相关的信息
• Build Name and Description Setter 构建历史列表栏 可以自定义显示一些值
• Rebuilder 快速获取上次的参数化构建选中的值
• Pipeline: Stage View 显示pipeline的每个阶段的视图
• Kubernetes 连接k8s的插件
• Kubernetes CLI pipeline中基于配置文件连接k8s的插件
• docker docker api
• Docker Pipeline pipeline中调用 docker api
• Locale jenkins汉化
• **Figlet Buildstep ** 自定义字体
• **HTTP Request ** http调用请求
• Hidden Parameter 隐藏插件
• Role-based Authorization Strategy 权限控制管理
• **LDAP ** Jenkins接入LDAP对用户做认证
• Lark Notice Plugin 飞书通知
• Pipeline Utility Steps 格式化json、yaml的方法

配置插件

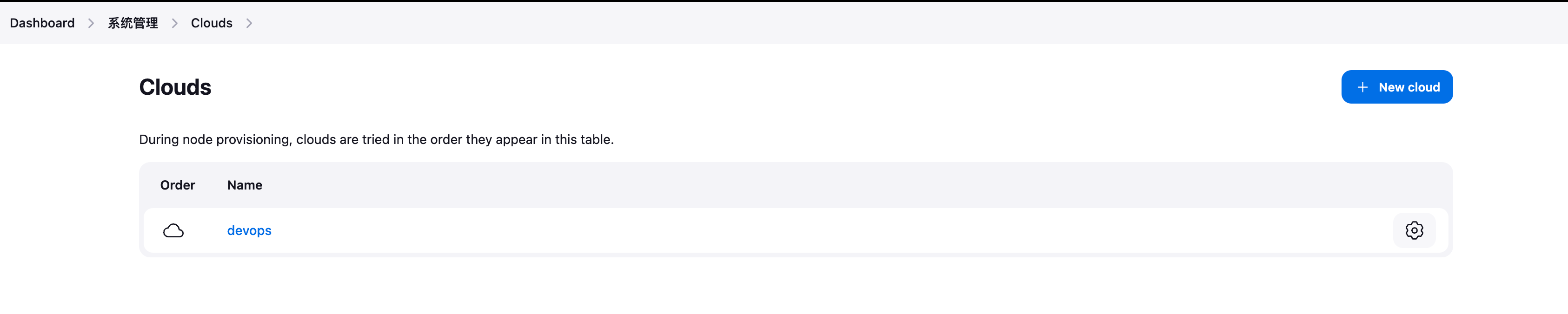

Kubernetes

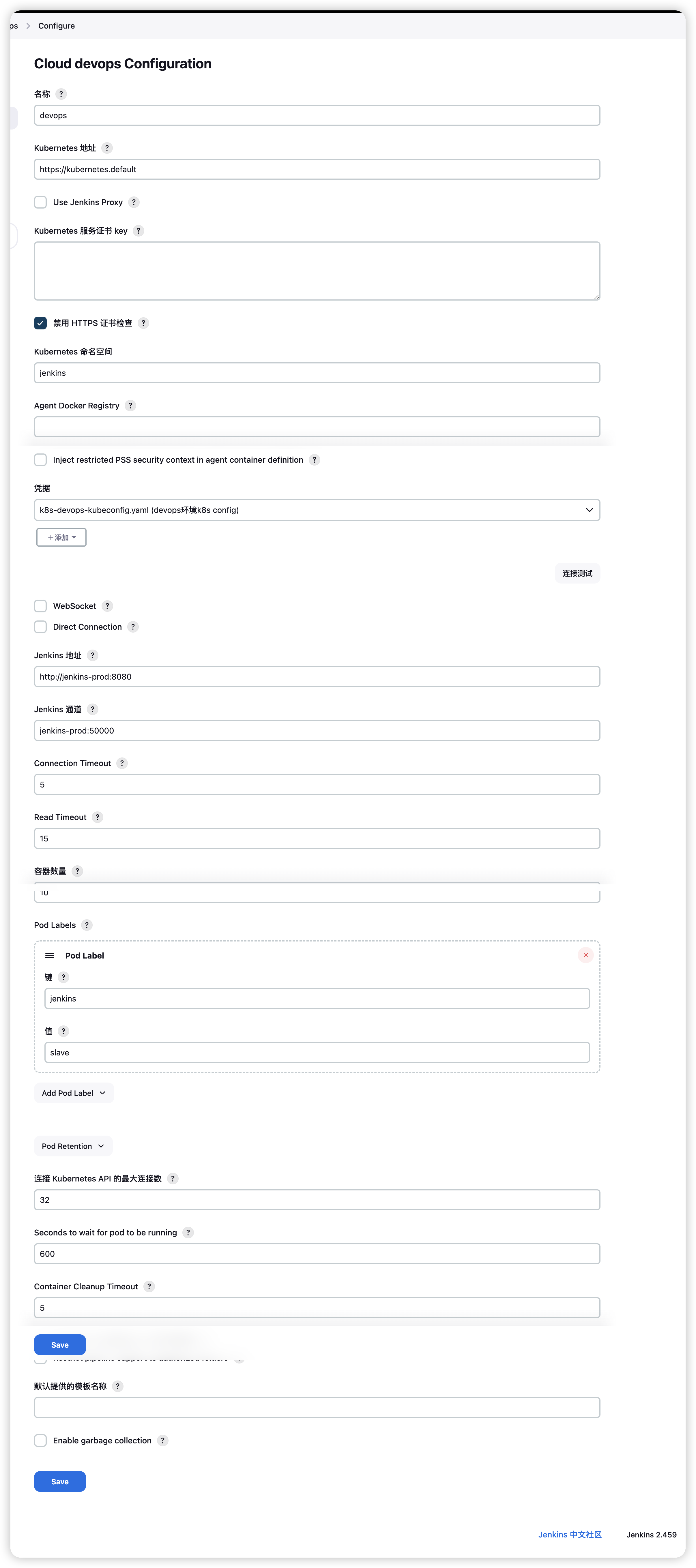

Cloud devops详细配置

pod模板详细配置

• 名称和标签列表保持统一, pipeline基于标签调度创建构建的容器
• 容器相关配置

1. Maven容器 用于编译java代码
2. Jnlp容器是jenkins 容器化的slave
3. Python容器 连接apisix对deployment的灰度配置
4. nfs目录挂载 用于缓存maven的目录 利于maven的编译加速
5. Image Pull Secret 用于下载镜像的认证
6. Raw YAML for the Pod 规则是将 maven的配置文件只挂载到maven容器中 连接内网nexus

spec:
  containers:
  - name: "maven"
    volumeMounts:
    - name: config-volume
      mountPath: /opt/apache-maven-3.5.3/conf/settings.xml
      subPath: settings.xml
  volumes:
    - name: config-volume
      configMap:
        name: devops-maven-setting
        items:
        - key: MavenSetting
          path: settings.xml
  securityContext:
    fsGroup: 1000

**Role-based Authorization Strategy **

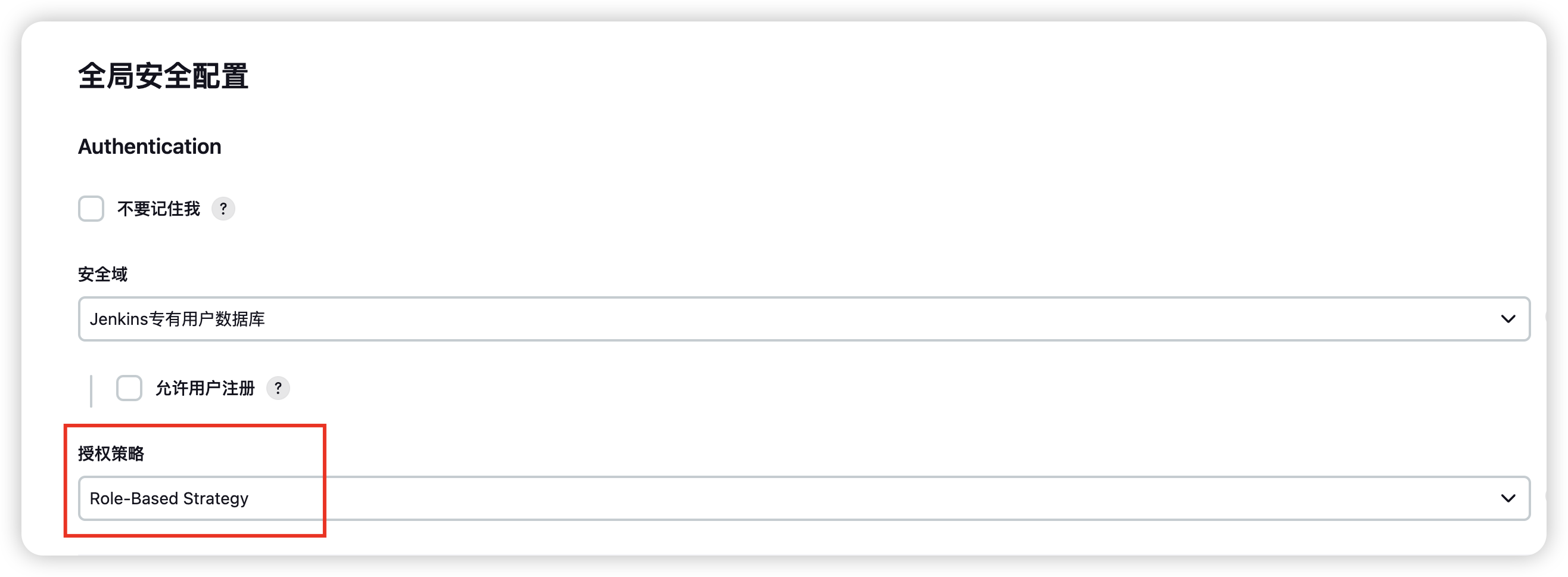

Dashboard 系统管理 全局安全配置 授权策略设置为插件授权

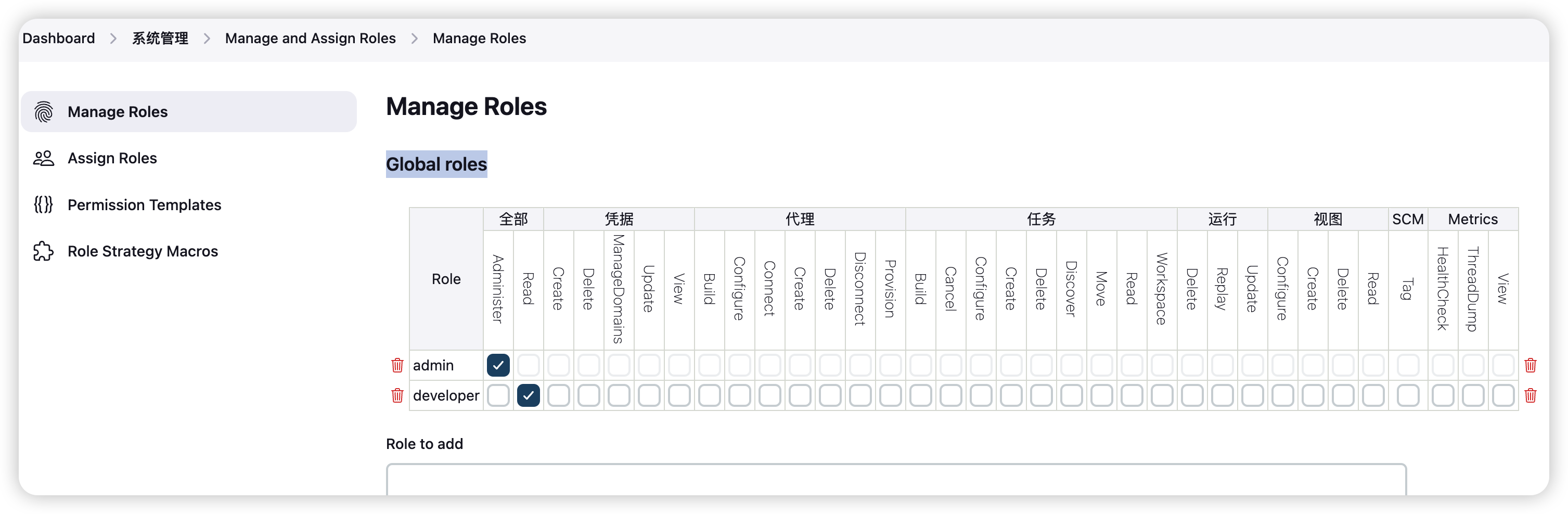

Global roles

这里新建一个全局角色 为: developer 给读权限

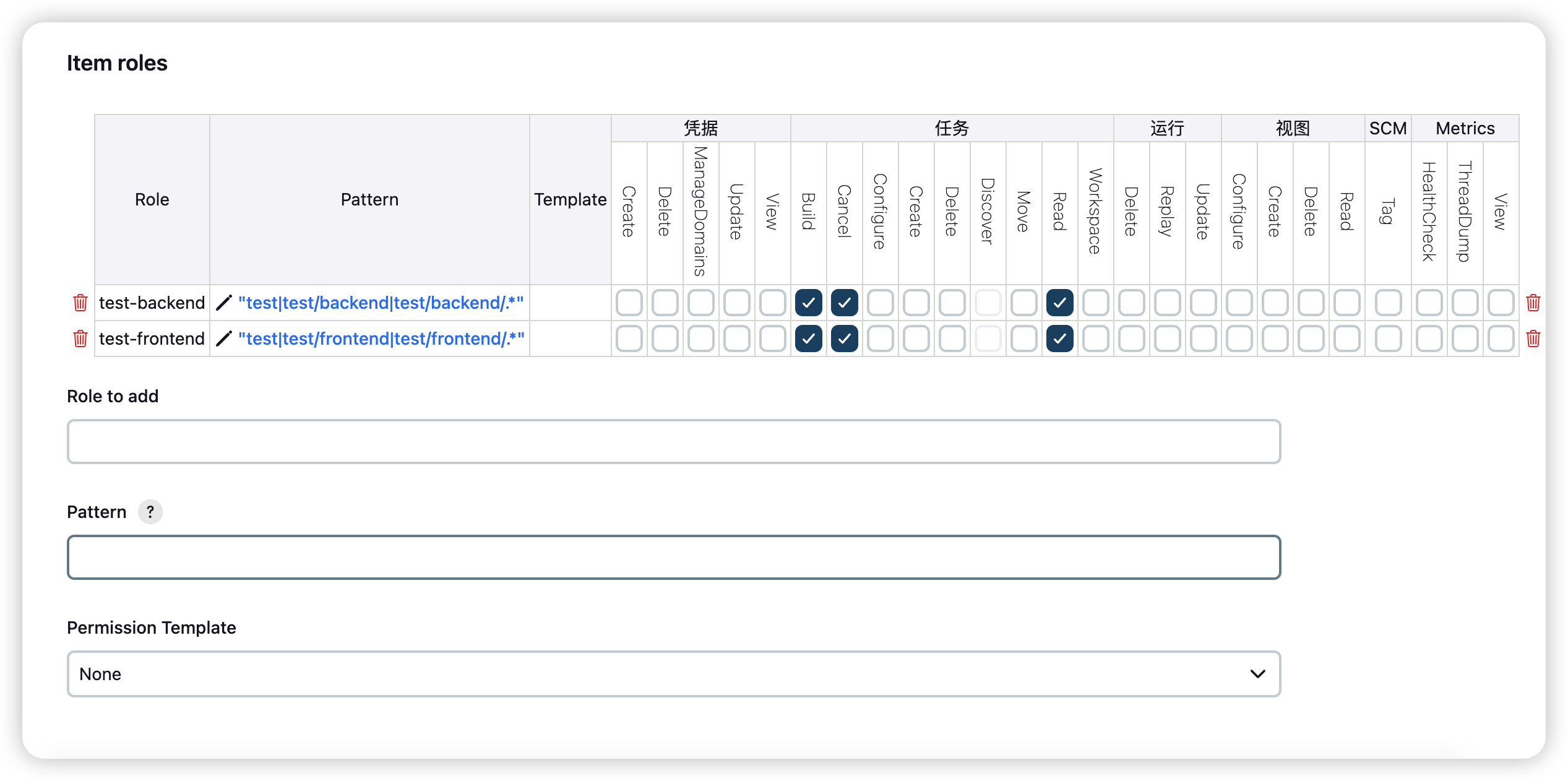

Item roles

为每个目录都创建一个角色权限，方便后面关联用户、组的时候 进行分配(只给了 job的查看、构建、取消的权限)

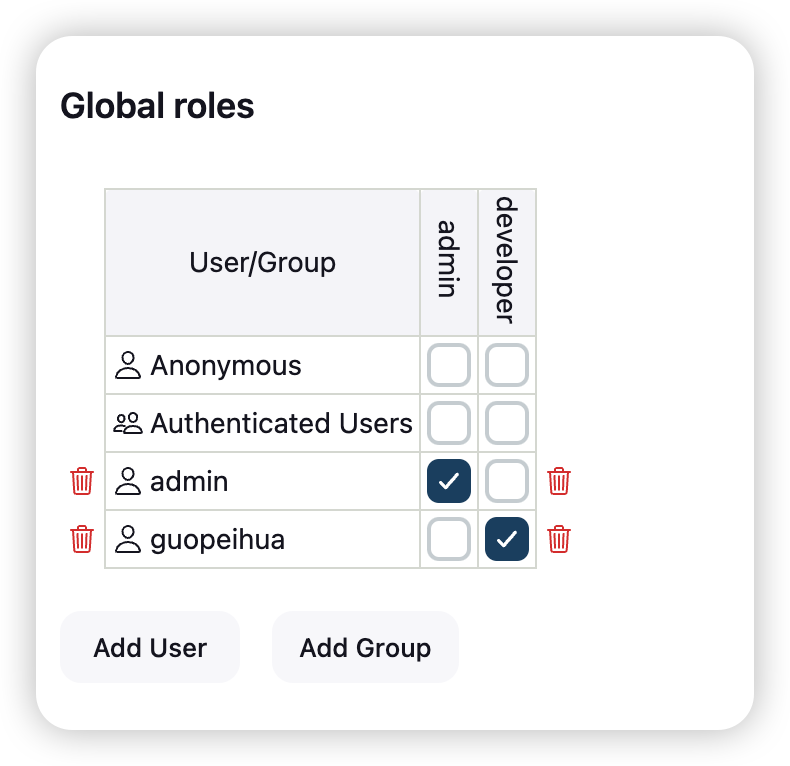

Global roles

为用户: guopeihua 关联 developer角色 继承这个角色的权限

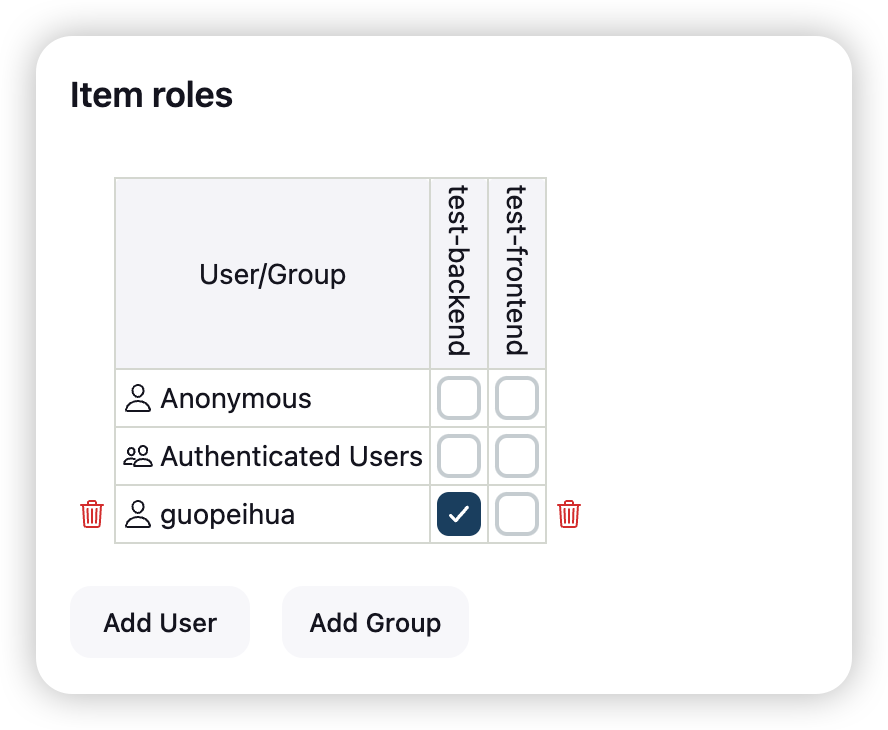

**Item roles **

为用户: guopeihua 关联item role 为test-backend 就会拥有role下的job权限

验证

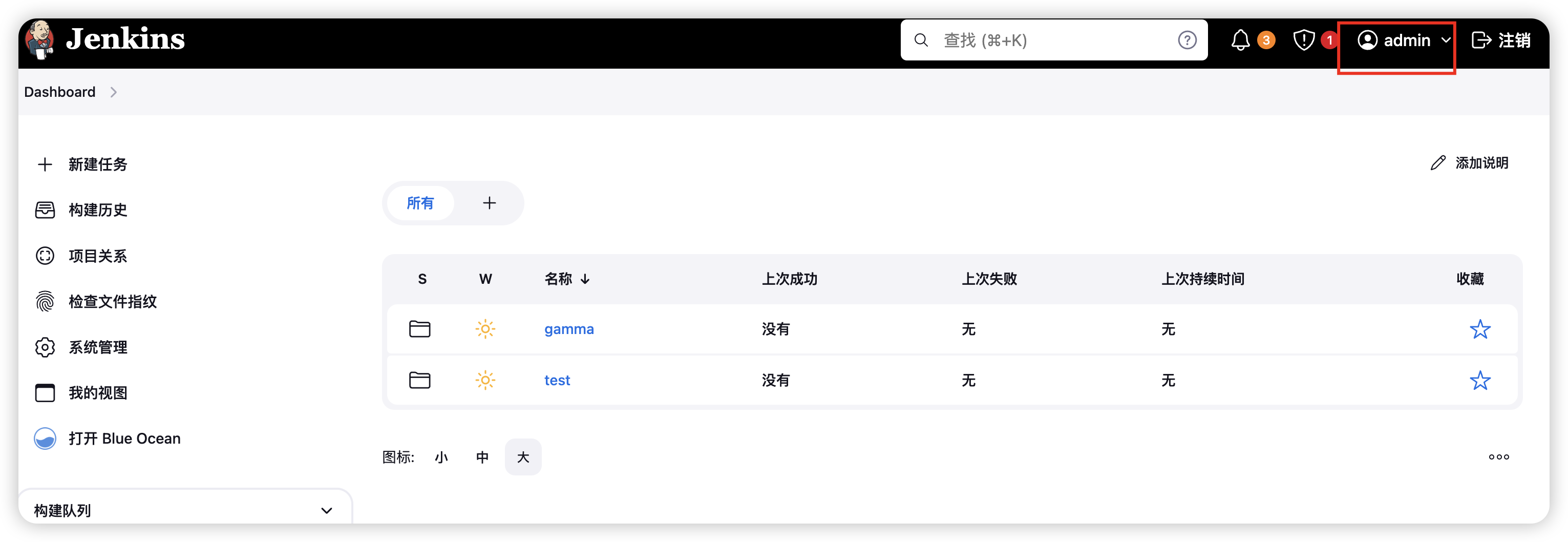

admin视图

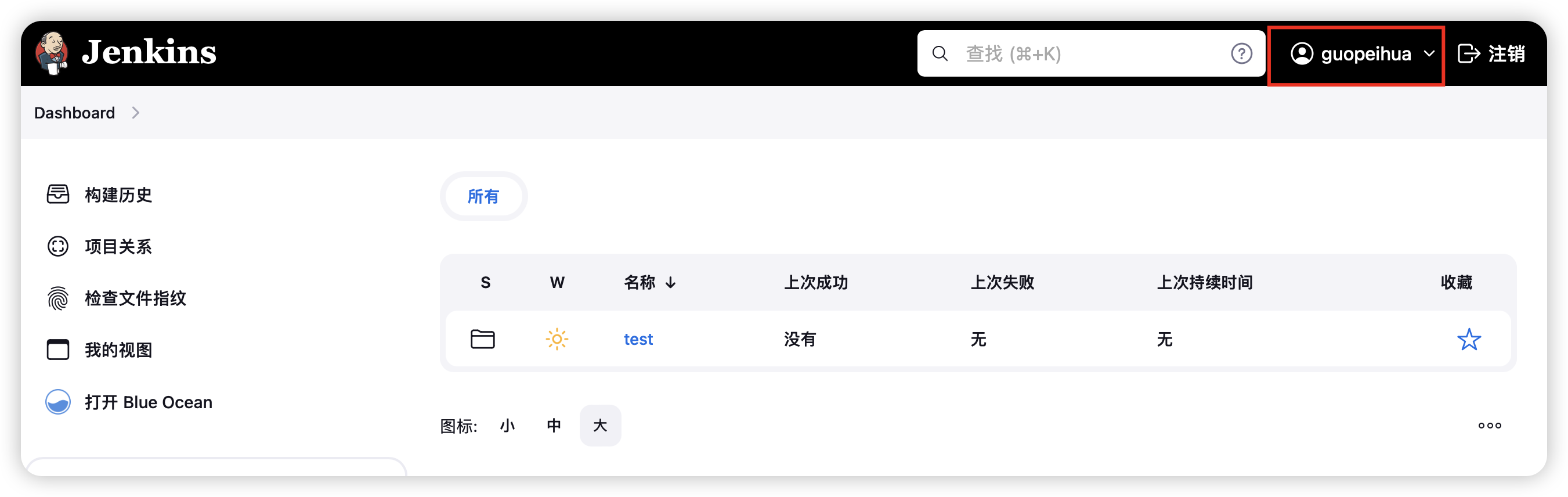

guopeihua视图

LDAP配置

• root DN ldap的跟查询路径
• User search base 基础的人员查询路径
• User search filter 人员查询规则 按照指定字段
• Manager DN 超级管理员信息
• Manager Password 超级管理员密码
• Display Name LDAP attribute jenkins右上角显示的名称 displayname在ldap中 是用户的中文名称
• Email Address LDAP attribute 用户的邮箱

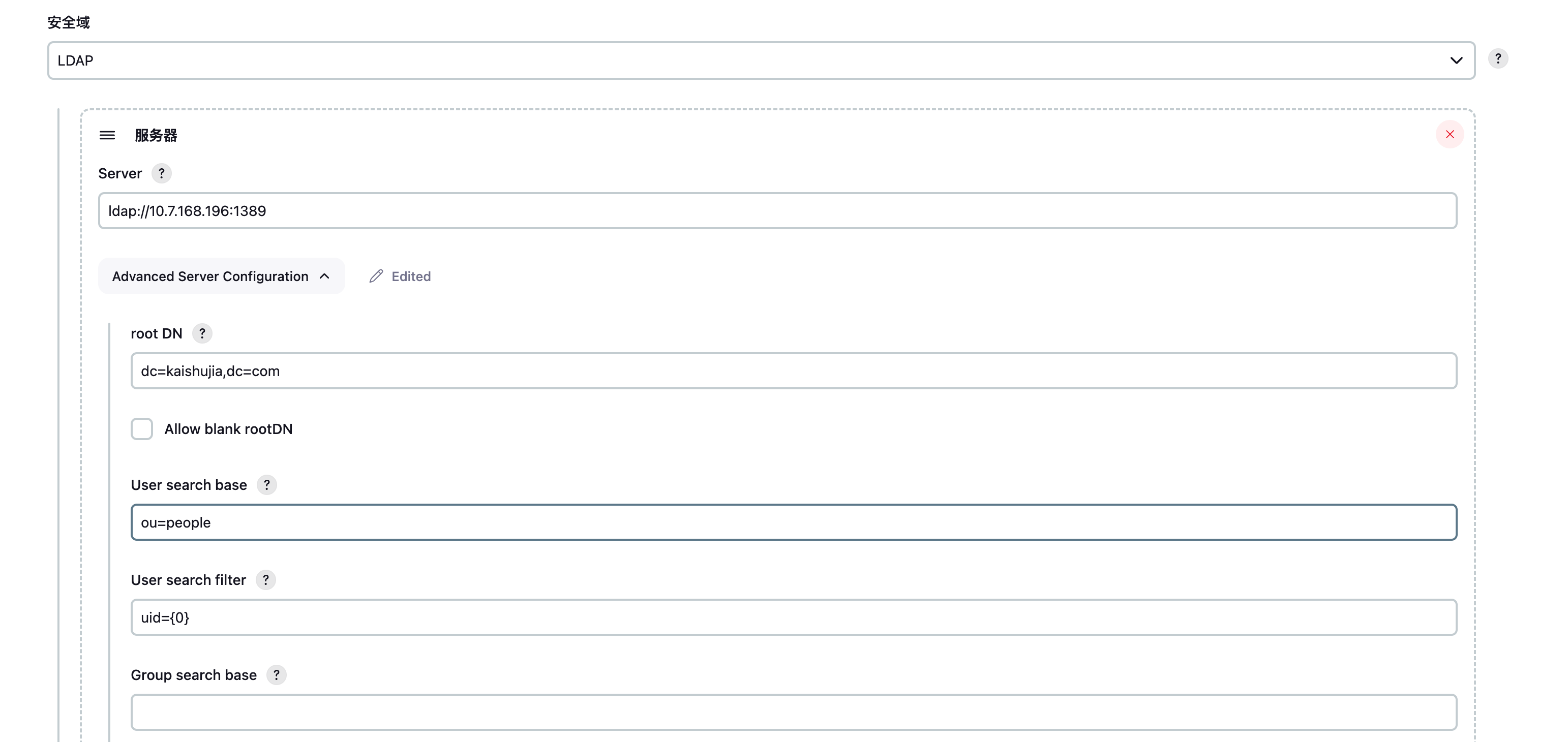

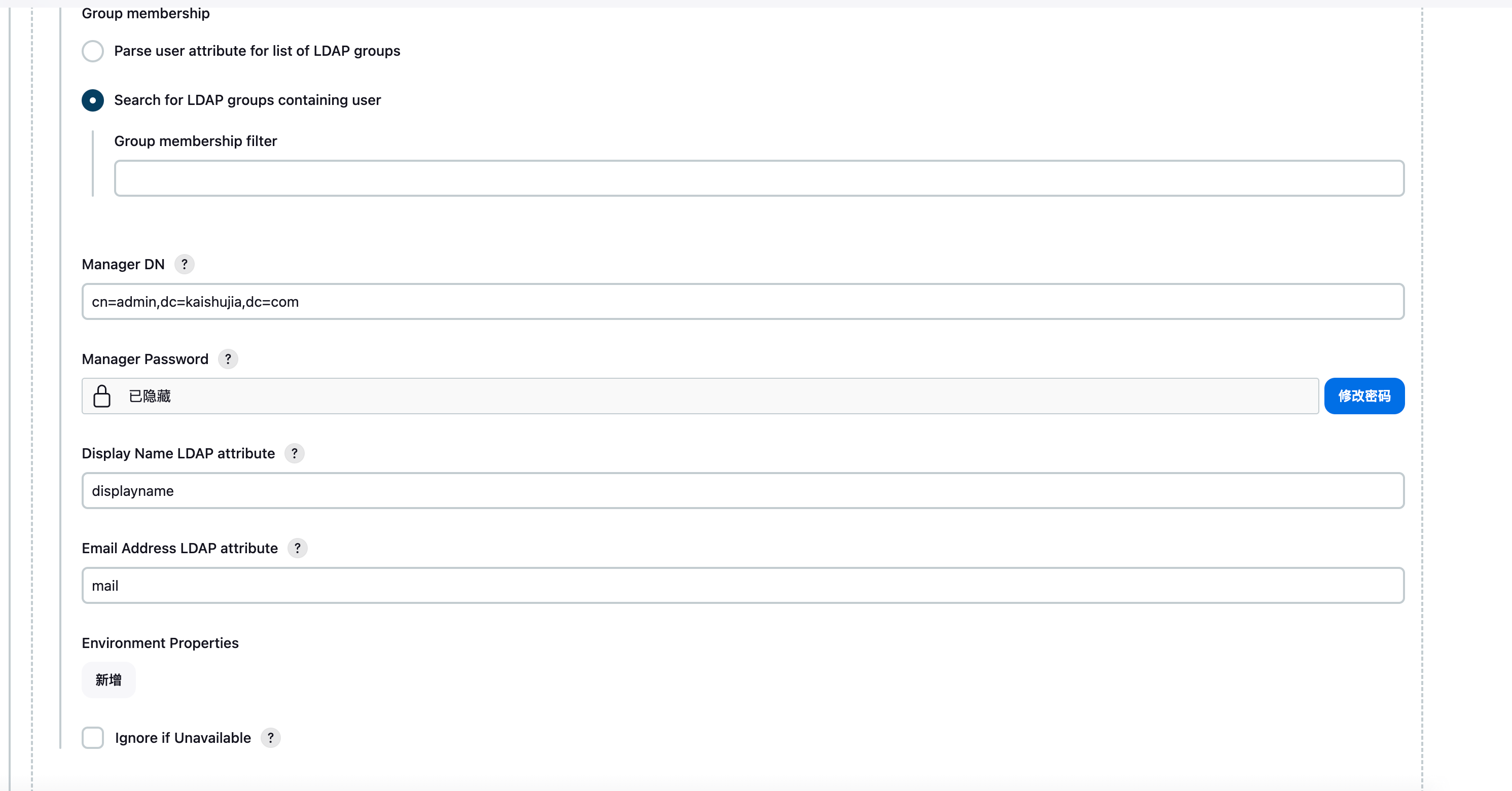

LDAP详细配置截图

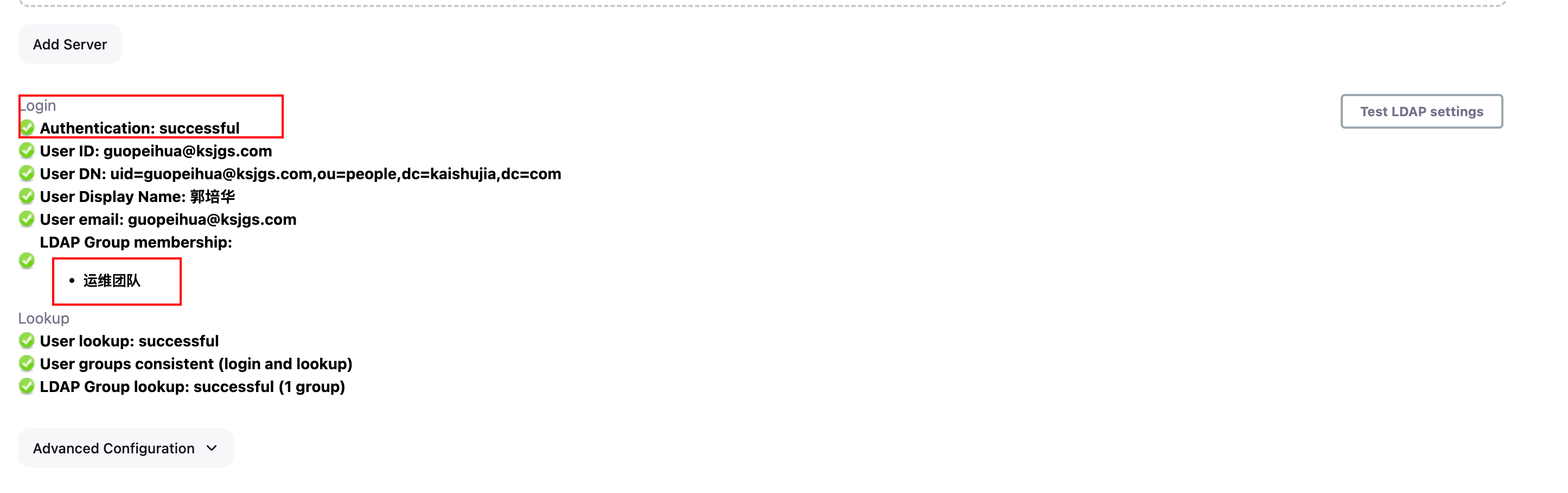

验证

用户名密码验证通过后 会返回该用户在ldap中的所在组

Lark Notice Plugin 飞书通知

参考文档: https://721806280.github.io/lark-notice-plugin-doc/guide/feature/lark/pipeline.html

安装完后 系统管理 有一个飞书的模块 在里面可以新增机器人 基于飞书函数发送消息 以下为代码示例

pipeline {
    agent any
    stages {
        stage('text'){
            steps {
                echo '发送文本消息...'
            }
            post {
                success {
                    lark (
                        robot: 'f72aa1bb-0f0b-47c7-8387-272d266dc25c',
                        type: 'TEXT',
                        text: [
                            "新更新提醒",
                            '<at user_id="all">所有人</at>'
                        ]
                    )
                }
            }
        }
    }
}
